Disc Pad (Front) Replacement

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.
  3. After installation, pump the brake pedal a few times and verify that the brakes do not drag.

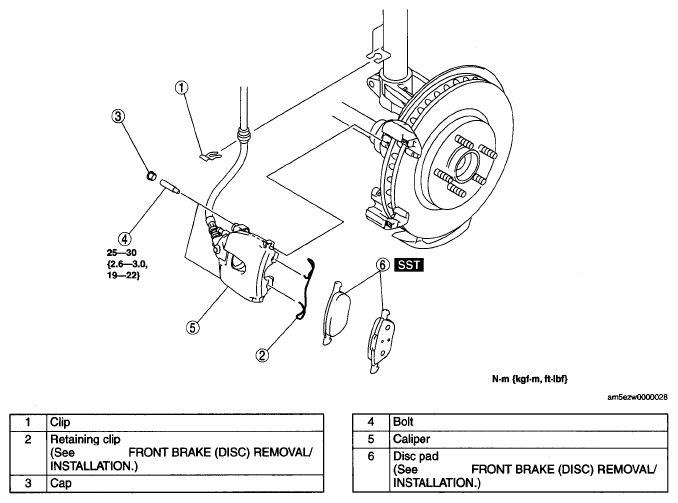

    Fig 1: Disc Pad Replacement Components (Front) With Torque Specifications
    G05544971Courtesy of MAZDA MOTORS CORP.
