Caliper (Rear) Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.

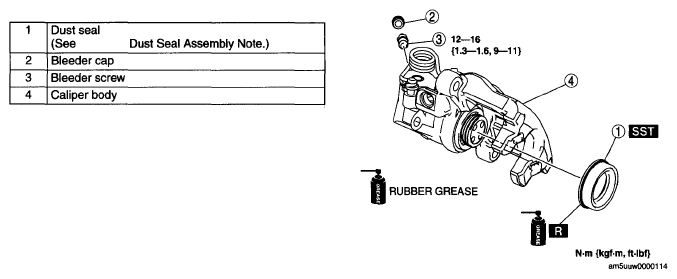

    Fig 1: Caliper Assembly Replacement Components With Torque Specifications (Rear)
    G05544993Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
