Cruise Control Switch Inspection [L3]: Notes

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover.
  2. Disconnect the negative battery cable.
  3. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION .)
  4. Disconnect the audio control switch connector.
  5. Inspect for resistance and continuity between cruise control switch terminals A-B using a tester.
    • If not as specified, replace the cruise control switch. (See AUDIO CONTROL SWITCH REMOVAL/INSTALLATION .)
      RESISTANCE SPECIFICATION

      Switch condition Resistance (ohm)
      ON/OFF button pressed Continuity
      CANCEL button pressed 117-123
      SET/COAST button pressed 666-694
      RES/ACCEL button pressed 2,156-2,244
      No button pressed No continuity

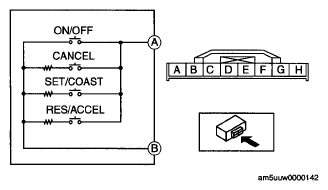

      Fig 1: Identifying Cruise Control Switch Connector Terminals
      G05544768Courtesy of MAZDA MOTORS CORP.
