Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel System (L3)
>>
Fuel System Location Index [L3]
>>
Engine Compartment Side
Engine Compartment Side

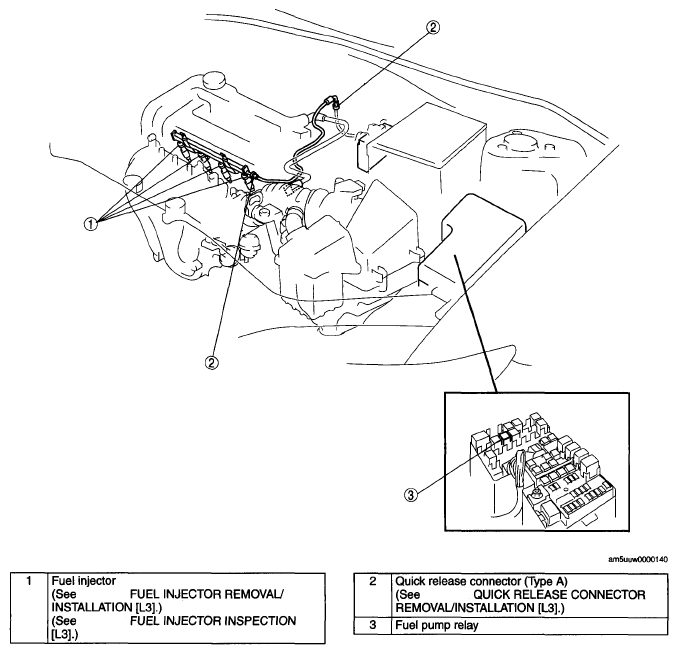

Fig 1: Identifying Fuel System Components Location (Engine Compartment Side)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
