Battery Box Installation Note

  1. Assemble with battery box hooks E aligned with the battery tray holes at two points.

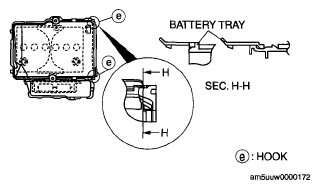

    Fig 1: View Of Battery Box Hooks
    G05543174Courtesy of MAZDA MOTORS CORP.
