5 Grand Touring, 2.3 L
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector End Views
>>
Climate Control Unit Connector End View
Climate Control Unit Connector End View

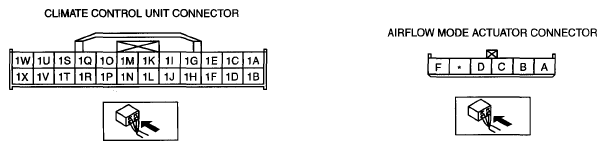

Fig 1: Climate Control Unit Connector End View
Courtesy of MAZDA MOTORS CORP.

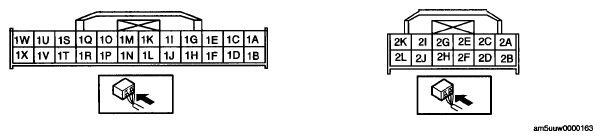

Fig 1: Climate Control Unit Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
