Neutral Switch Removal/Installation [G35M-R]

Remove the under cover.
Remove the No.1 engine mount rubber and No.1 engine mount bracket.

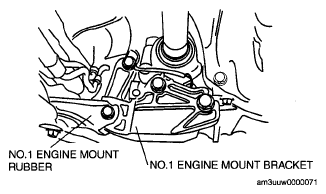

Fig 1: Identifying No.1 Engine Mount Rubber & No.1 Engine Mount Bracket
Courtesy of MAZDA MOTORS CORP.
Remove the neutral switch.
Install the neutral switch (with a new packing) to the transaxle case.
Tightening torque 19.6-29.4 N.m {2.0-2.9 kgf.m, 14.5-21.6 ft.lbf}

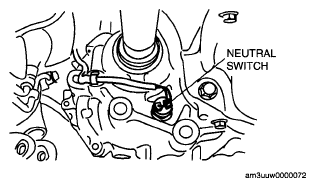

Fig 2: Identifying Neutral Switch
Courtesy of MAZDA MOTORS CORP.
Install the No.1 engine mount bracket.
Tightening torque 93.1-116.6 N.m {9.5-11.8 kgf.m, 68.7-85.9 ft.lbf}
Install the No.1 engine mount rubber. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [G35M-R] ).
Install the under cover.

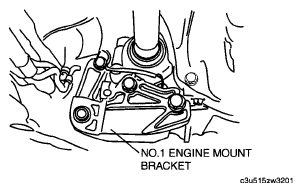

Fig 3: Identifying No.1 Engine Mount Bracket
Courtesy of MAZDA MOTORS CORP.
