PCM Cover Installation Note

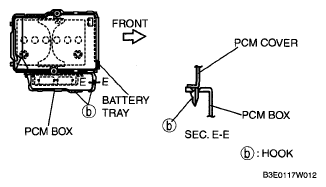

  1. Install with PCM cover hooks B aligned with the PCM box holes at two points.
    Fig 1: Identifying PCM Box And Battery Tray
    G04955072Courtesy of MAZDA MOTORS CORP.

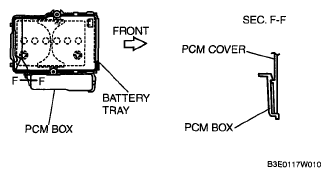

  2. Install the PCM cover to the PCM box hook.
    Fig 2: Identifying PCM Box And Battery Tray
    G04955073Courtesy of MAZDA MOTORS CORP.
