Home >> Mazda >> 2009 >> 3 Mazdaspeed, 2.3 M >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System (LF, L3) >> Battery Removal/Installation [LF, L3] >> Notes

Battery Removal/Installation [LF, L3]: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

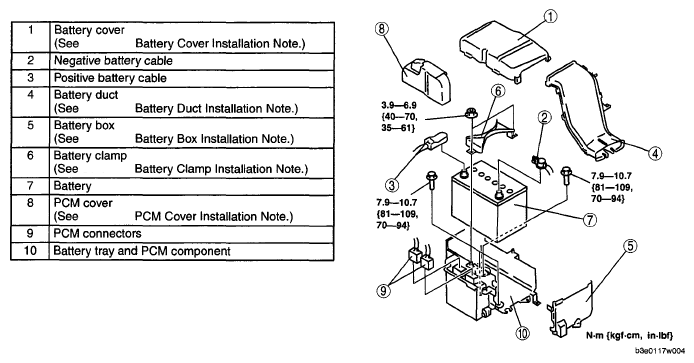

    Fig 1: Battery Mounting With Torque Specification
    G04955071Courtesy of MAZDA MOTORS CORP.
