Battery Box Installation Note

  1. Assemble with battery box hooks E aligned with the battery tray holes at two points.

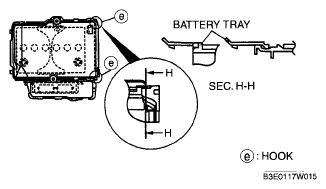

    Fig 1: Identifying Battery Tray, Holes And Hooks
    G04955075Courtesy of MAZDA MOTORS CORP.
