Trunk Lid Latch Manual Release Procedure

NOTE: If the trunk lid cannot be opened due to a discharged battery or malfunction in the electrical system, it can be opened using the following procedure.
  1. Fold down the rear seat back.
    CAUTION: Wear gloves when performing the procedure. The body edge can injure bare hands.
  2. Move the lever shown in the figure to the left to open the trunk lid.

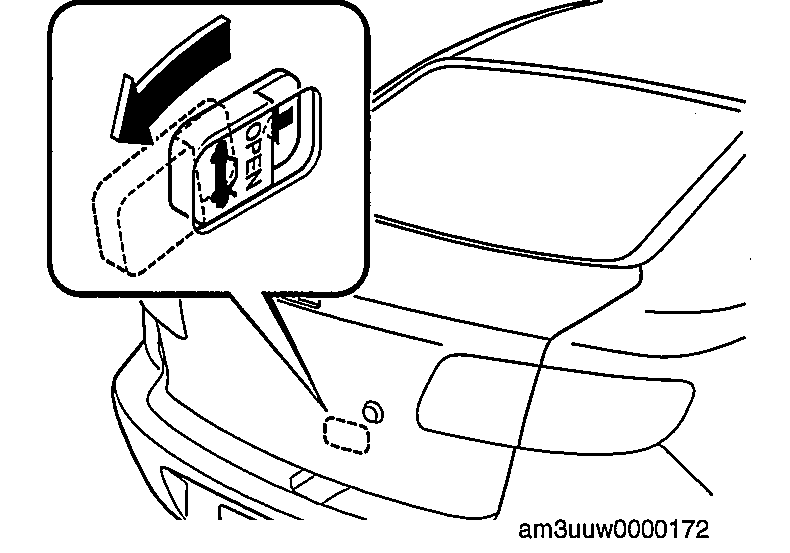

    Fig 1: Locating Trunk Lid Manual Release Latch
    G00485717Courtesy of MAZDA MOTORS CORP.
