Connector End Views - Control Systems

CONNECTOR END VIEWS - CONTROL SYSTEMS

Connector End Views

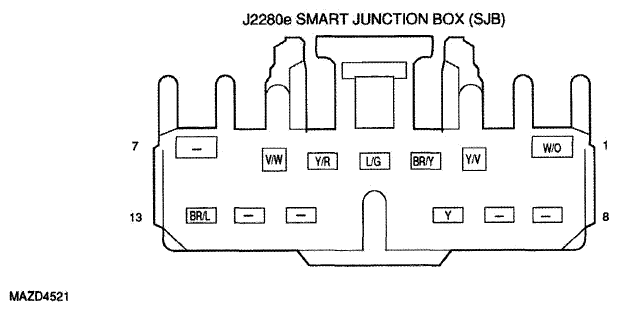

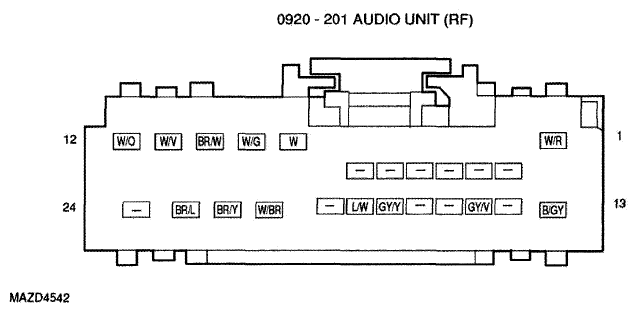

Courtesy of MAZDA MOTORS CORP.

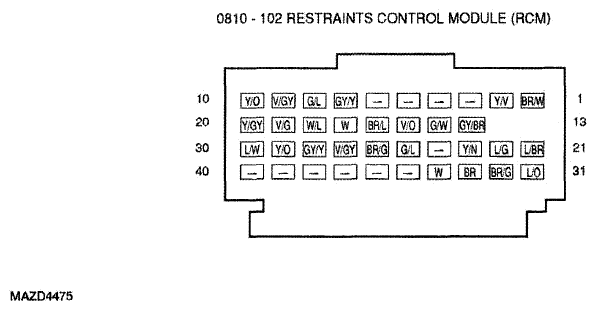

Courtesy of MAZDA MOTORS CORP.

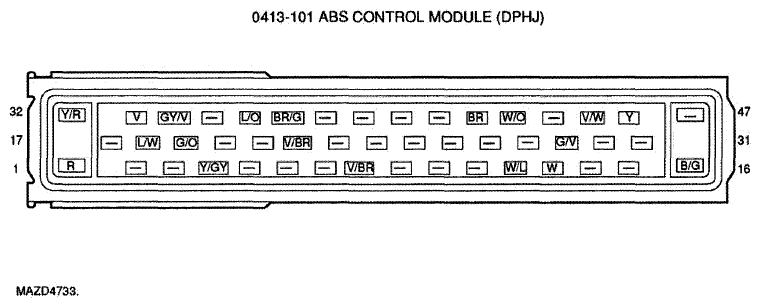

Courtesy of MAZDA MOTORS CORP.

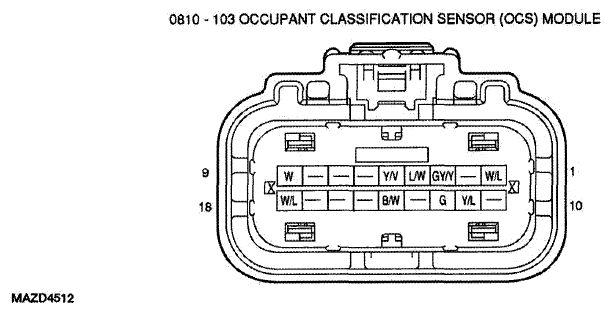

Courtesy of MAZDA MOTORS CORP.

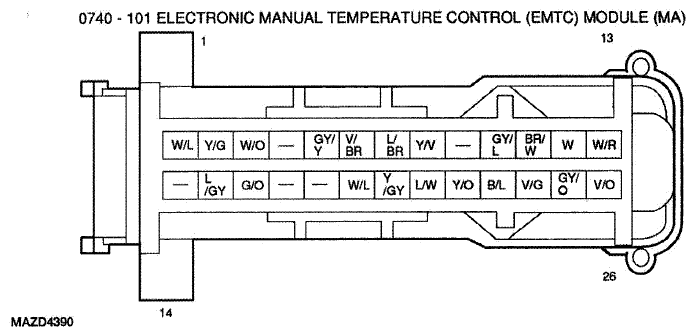

Courtesy of MAZDA MOTORS CORP.

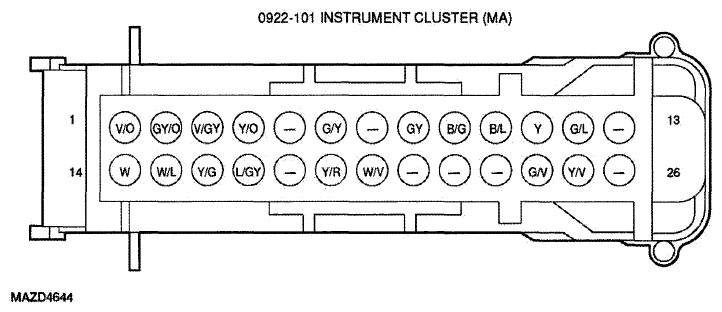

Courtesy of MAZDA MOTORS CORP.

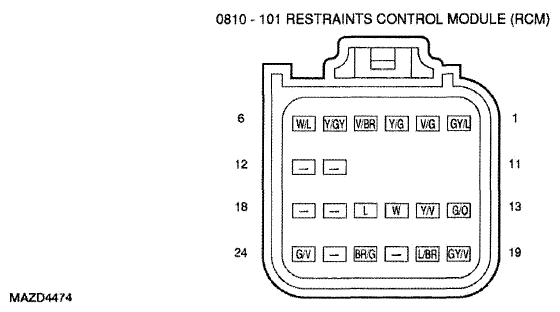

Courtesy of MAZDA MOTORS CORP.

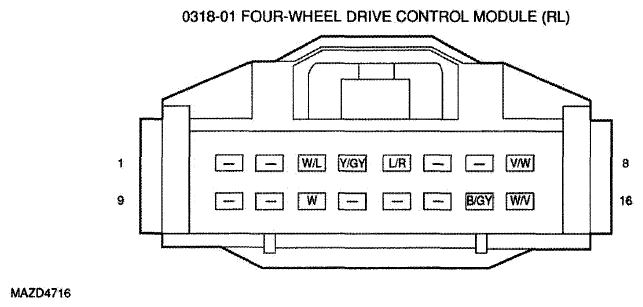

Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
