Clutch Pedal Position (CPP) Switch Removal/Installation

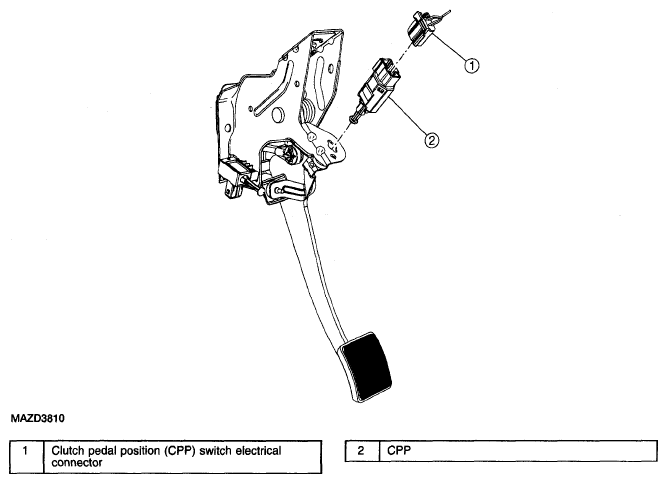

Fig 1: Identifying Clutch Pedal Position (CPP) Switch Remove/Install Components
G05465016Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the clutch pedal position (CPP) electrical connector.
  2. Rotate the CPP switch clockwise and remove the CPP switch.
  3. To install, reverse the removal procedure.
