Mass Air Flow (MAF) Sensor - 2.3L Removal/Installation

  1. Disconnect the mass air flow (MAF) sensor electrical connector.
  2. Remove the 2 screws and the MAF sensor.
    • To install, tighten to 10 N.m {1.0 kgf.m, 89 in.lbf}.
  3. To install, reverse the removal procedure.

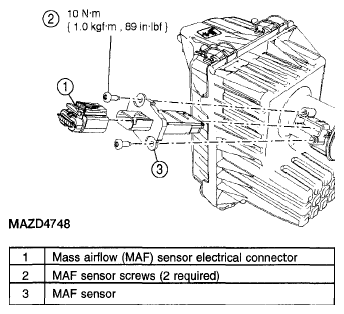

    Fig 1: MAF Sensor, Screw, Electrical Connector With Torque Specifications
    G05464988Courtesy of MAZDA MOTORS CORP.
