Negative Toe (Toe Out)

Fig 1: Identifying Negative Toe (Toe Out)

Courtesy of MAZDA MOTORS CORP.

Incorrect thrust angle (also known as dogtracking) is the condition in which the rear axle is not square to the chassis. Heavily crowned roads can give the illusion of dogtracking.

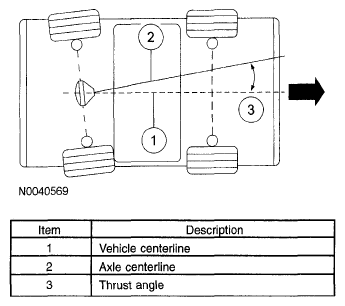

Fig 2: Identifying Incorrect Thrust Angle

Courtesy of MAZDA MOTORS CORP.
