Engine Ignition Components - Exploded View

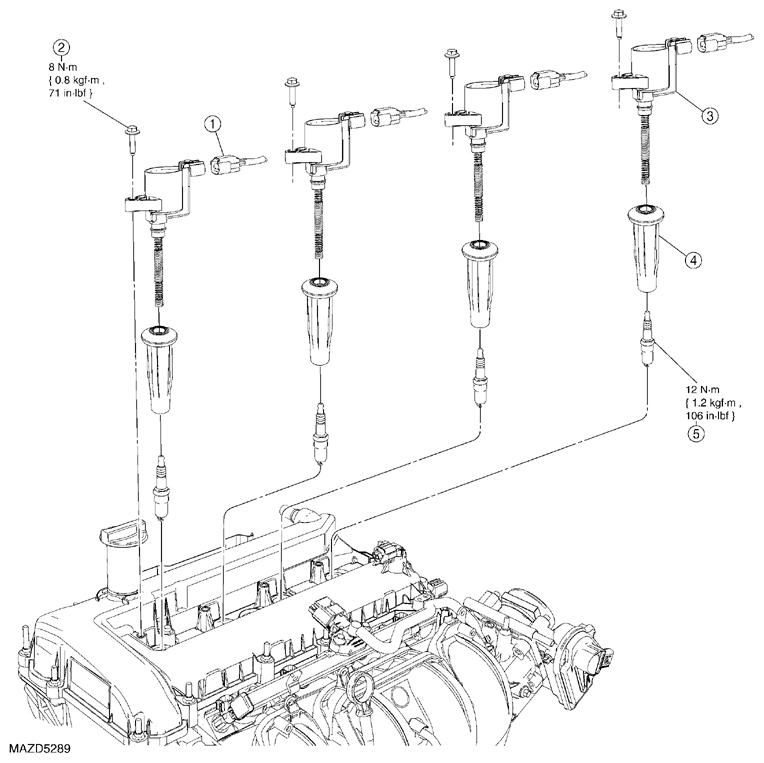

Fig 1: Exploded View Of Engine Ignition With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

ENGINE IGNITION REFERENCE CHART

1	Ignition coil-on-plug electrical connectors (4 required)
2	Ignition coil bolts (4 required)
3	Ignition coils (4 required)
4	Coil boots (4 required)
5	Spark plugs (4 required)

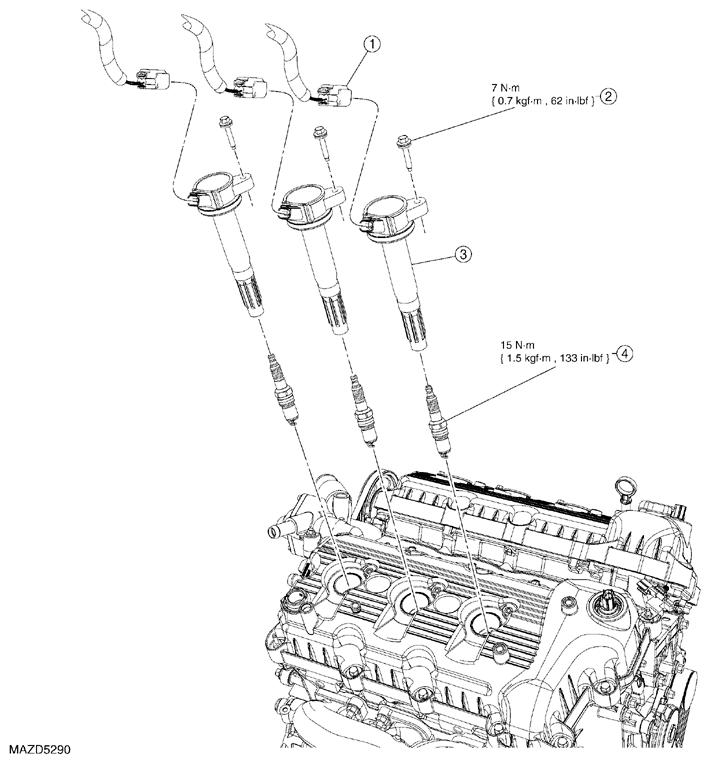

Fig 2: Exploded View Of Engine Ignition With Torque Specifications (RH)

Courtesy of MAZDA MOTORS CORP.

ENGINE IGNITION REFERENCE CHART

1	RH ignition coil-on-plug electrical connectors (3 required)
2	RH ignition coil-to-valve cover bolts (3 required)
3	RH ignition coils (3 required)
4	RH spark plugs (3 required)

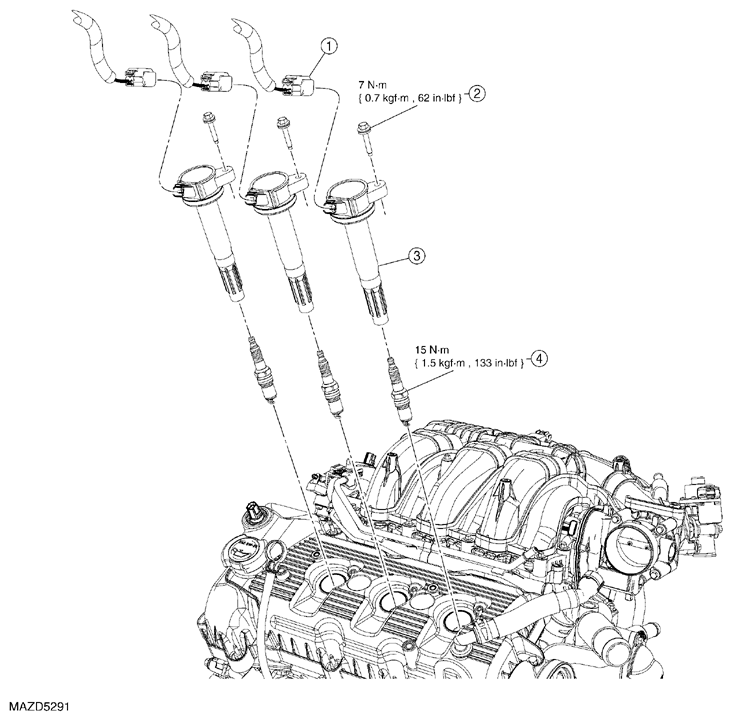

Fig 3: Exploded View Of Engine Ignition With Torque Specifications (LH)

Courtesy of MAZDA MOTORS CORP.

ENGINE IGNITION REFERENCE CHART

1	LH ignition coil-to-valve cover bolts (3 required)
2	LH ignition coil-on-plug electrical connectors (3 required)
3	LH ignition coils (3 required)
4	LH spark plugs (3 required)

1. For additional information, see the appropriate procedures .
