Mass Air Flow (MAF) Sensor Removal/Installation - 3.0L

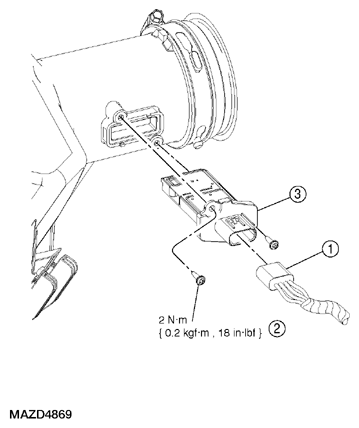

Fig 1: Mass Air Flow (MAF) Sensor Replacement Components - 3.0L With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

ITEM DESCRIPTION CHART

1	Mass air flow (MAF) sensor electrical connector
2	MAF sensor screws (2 required)
3	MAF sensor

CAUTION: The mass air flow (MAF) sensor electronics module and body are calibrated as a unit and must be serviced as a unit. Do not tamper with the sensing elements located in the air flow bypass of the MAF body.

1. Disconnect the mass air flow (MAF) sensor electrical connector.
2. Remove the 2 screws and the MAF sensor.
   • To install, tighten to 2 N.m {0.2 kgf.m, 18 in.lbf}.
3. To install, reverse the removal procedure.
