Knock Sensor (KS) - 2.3L Removal/Installation

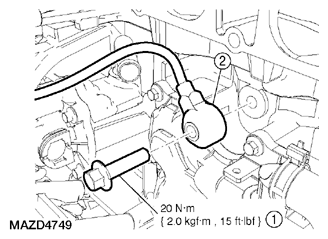

Fig 1: Lnock Sensor (KS) And Bolt - 2.3L With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

ITEM DESCRIPTION CHART

1	Knock sensor (KS) bolt
2	KS

1. With the vehicle in NEUTRAL, position it on a hoist. See LIFTING .
2. Remove the intake manifold. See INTAKE MANIFOLD -- 2.3L REMOVAL/INSTALLATION .
3. Remove the bolt and the knock sensor (KS).
   • To install, tighten to 20 N.m {2.0 kgf.m, 15 ft.lbf}.
4. To install, reverse the removal procedure.
