Clutch Pedal Position (CPP) Switch Removal/Installation

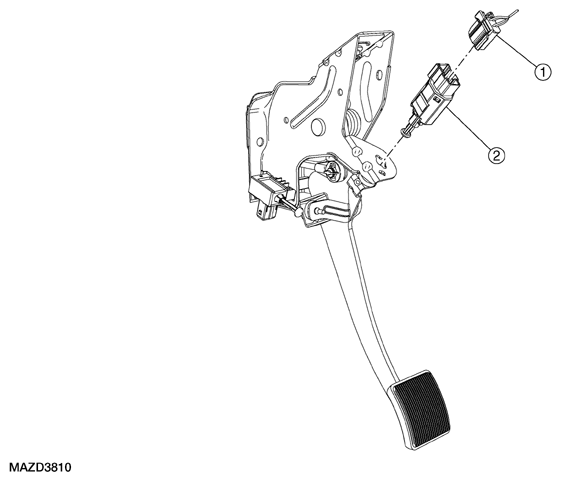

Fig 1: Identifying Clutch Pedal Position (CPP) Switch Components

Courtesy of MAZDA MOTORS CORP.

ITEM DESCRIPTION CHART

1	Clutch pedal position (CPP) switch electrical connector
2	CPP switch

1. Disconnect the clutch pedal position (CPP) electrical connector.
2. Rotate the CPP switch clockwise and remove the CPP switch.
3. To install, reverse the removal procedure.
