Camshaft Position (CMP) Sensor - 2.3L Removal/Installation

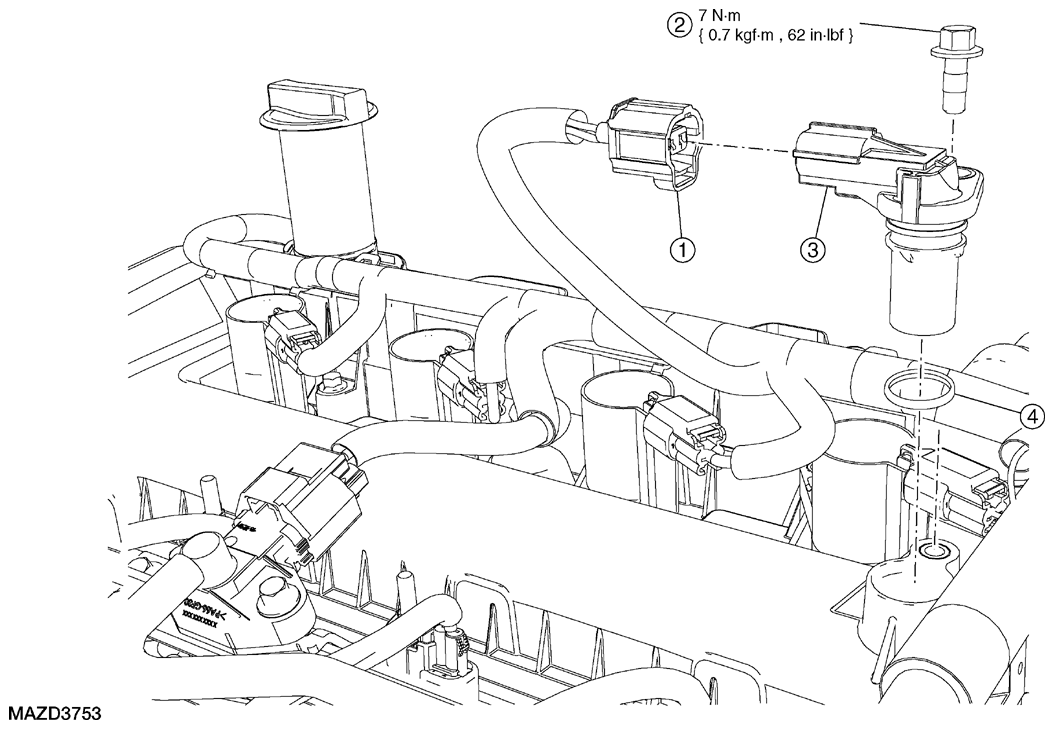

Fig 1: Camshaft Position (CMP) Sensor Replacement Components - 2.3L With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

ITEM DESCRIPTION CHART

1	Camshaft position sensor (CMP) electrical connector
2	CMP bolt
3	CMP
4	CMP O-ring

1. Disconnect the camshaft position (CMP) sensor electrical connector.
2. Remove the bolt and the CMP sensor.
   • To install, tighten to 7 N.m {0.7 kgf.m, 62 in.lbf}.
   • Inspect the O-ring seal and install new as necessary.
3. To install, reverse the removal procedure.

NOTE: Lubricate the camshaft position (CMP) sensor O-ring seal with clean engine oil.
