Total Toe-in Adjustment

Loosen the installation nut of the adjusting cam bolt.

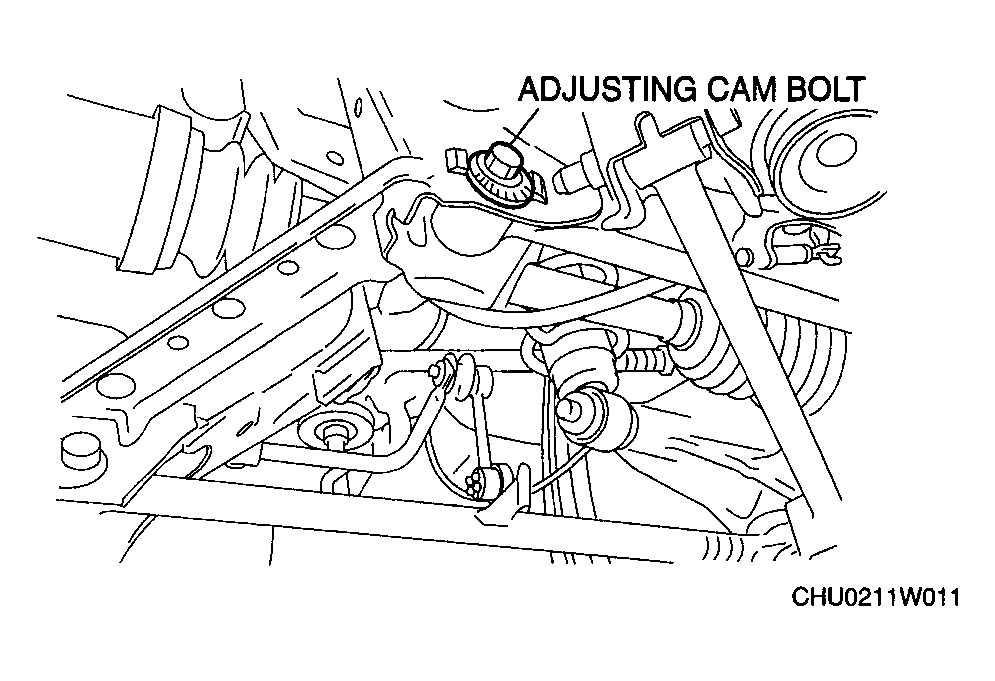

Fig 1: Loosening Adjusting Cam Bolt
Courtesy of MAZDA MOTORS CORP.
Rotate the adjusting cam bolt in either direction to adjust the toe-in.
Standard 2+/-4 mm {0.08+/-0.15 in} (0°16'+/-20)

Fig 2: Identifying Adjusting Cam Bolt Direction
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Refer to the following figure for the adjusting angle per one graduation of the toe-in gauge.

  Fig 3: Adjusting Angle Per One Graduation Of Toe-In Gauge
  Courtesy of MAZDA MOTORS CORP.
Tighten the nut.
Tightening torque 70-95 N.m {7.2-9.6 kgf.m, 52-70 ft.lbf}
