Rear Abs Wheel-Speed Sensor Removal/Installation

  1. Remove the trunk side trim.
  2. Remove in the order indicated in Fig 1.
  3. Install in the reverse order of removal.

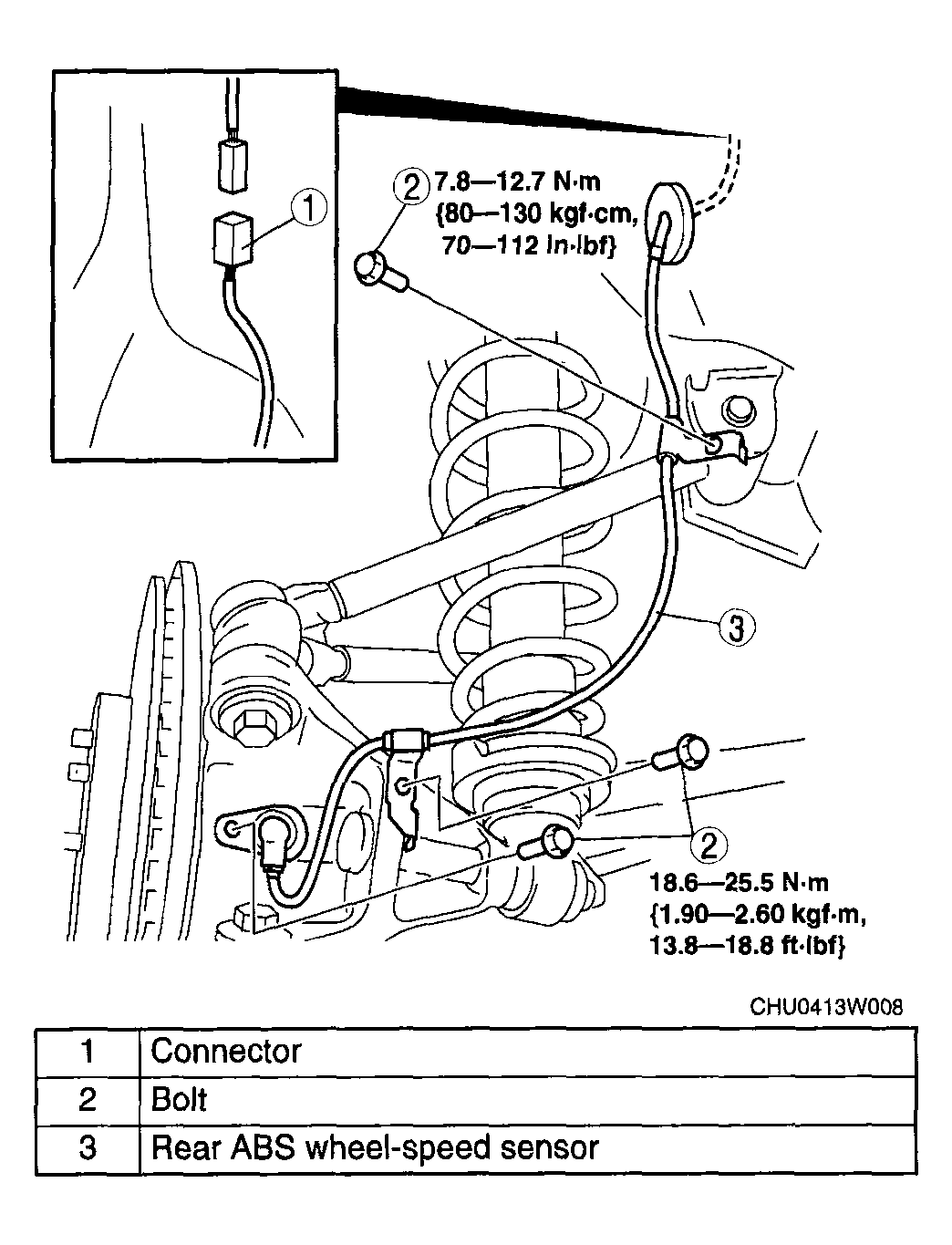

    Fig 1: Removing/Installing Rear ABS Wheel-Speed Sensor With Torque Specifications
    G04563420Courtesy of MAZDA MOTORS CORP.
