Slide Motor Inspection

  1. Disconnect the slide motor connector.
  2. Connect battery positive voltage to slide motor terminal A or B, then verify that the slide motor operate as shown in SLIDE MOTOR OPERATION .
    • If the slide motor does not operate as indicated in the table, replace the slide motor.
    SLIDE MOTOR OPERATION

    Motor operation Connection
    B+ GND
    Forward B A
    Backward A B

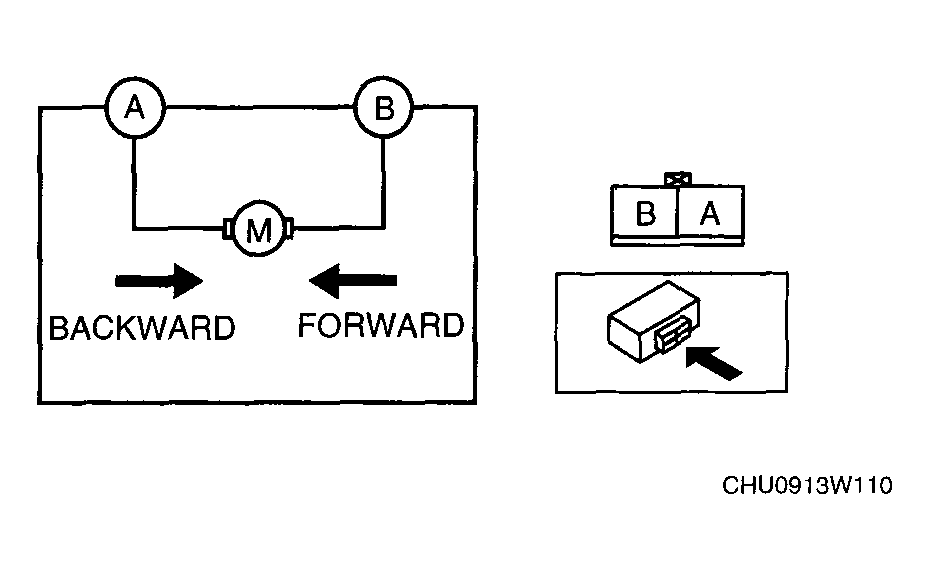

    Fig 1: Identifying Slide Motor Terminals
    G04564303Courtesy of MAZDA MOTORS CORP.
