Panel Light Control Switch Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the panel light control switch. (See PANEL LIGHT CONTROL SWITCH REMOVAL NOTE .)
  3. Disconnect the connector.
  4. Install in the reverse order of removal.

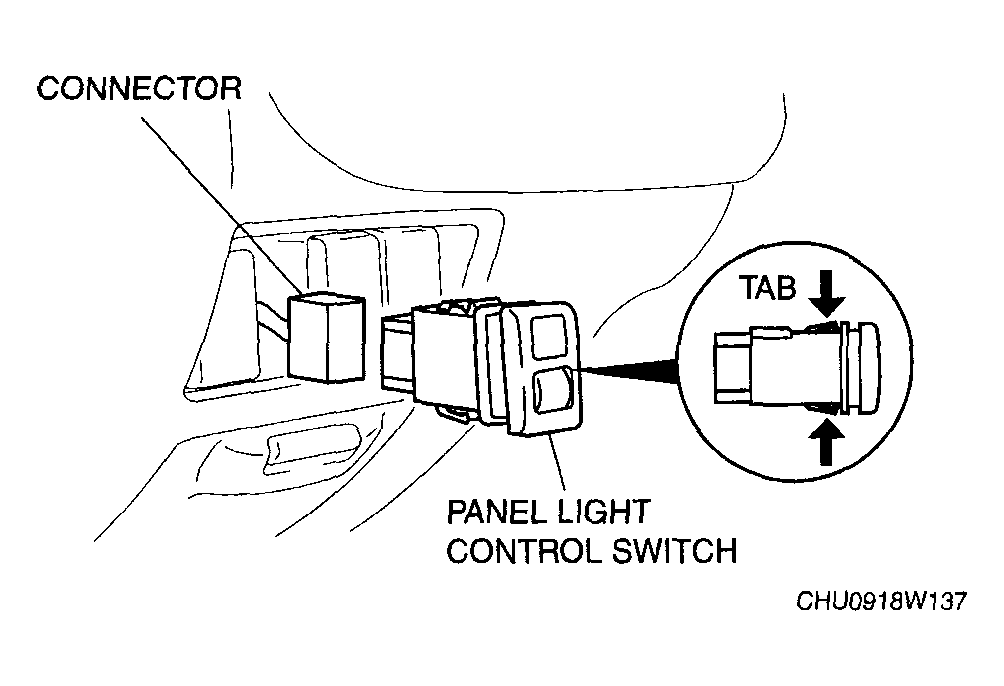

    Fig 1: Identifying Panel Light Control Switch
    G04564543Courtesy of MAZDA MOTORS CORP.
