LCD Unit Installation Note

  1. Install the LCD unit by lightly pressing on the shaded part shown in the figure.
    CAUTION:
    • Do not press on the folding part of the display when installing. This may cause an impact that could damage the open/closing gear of the display, causing it to not operate properly.

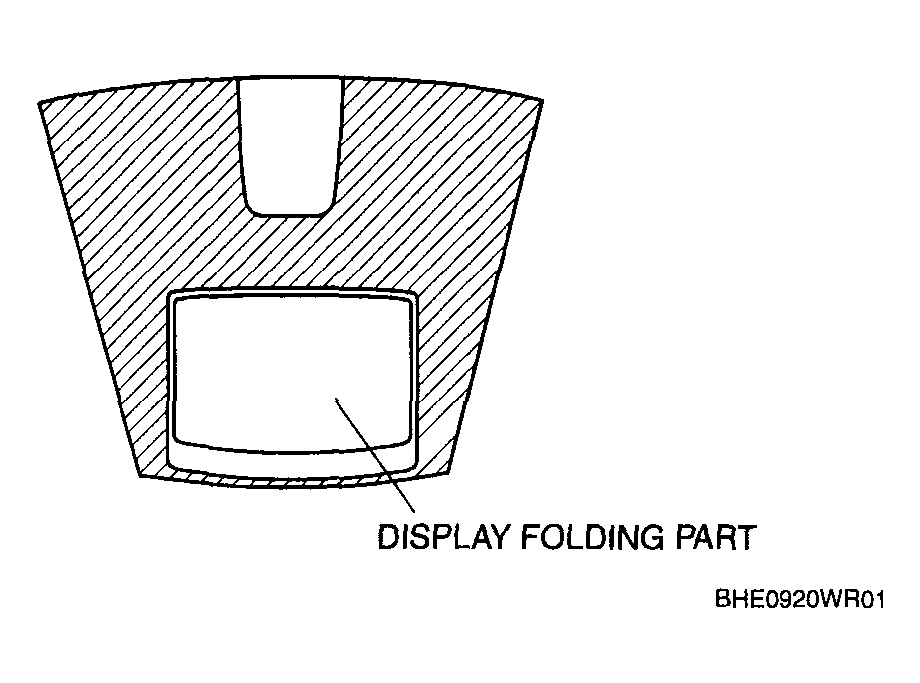

    Fig 1: Installing LCD Unit By Lightly Pressing On Shaded Part
    G04564592Courtesy of MAZDA MOTORS CORP.
