Selector Lever Component Connector End View

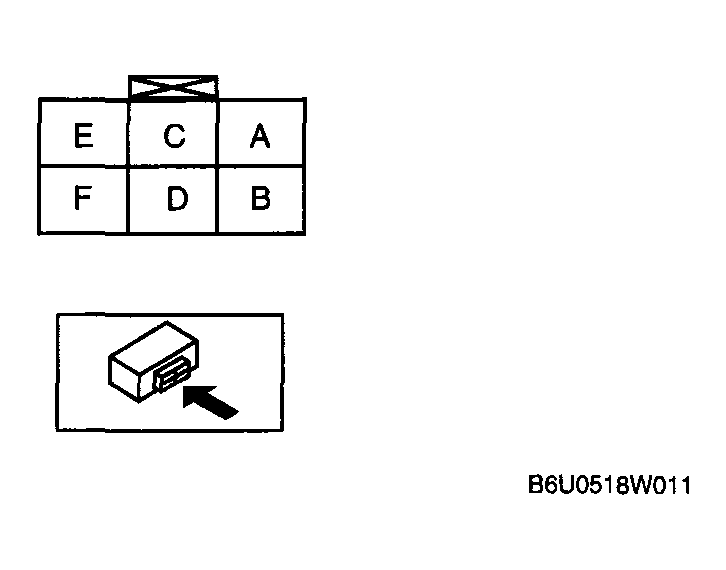

Fig 1: Selector Lever Component Connector End View
G04563854Courtesy of MAZDA MOTORS CORP.


Fig 1: Selector Lever Component Connector End View
G04563491Courtesy of MAZDA MOTORS CORP.
