Generator Inner Parts: Brush

• If any brush is worn almost to or beyond the limit, replace all of the brushes.

Standard brush length

18.5 mm {0.73 in}

Minimum brush length

5.0 mm {0.2 in}

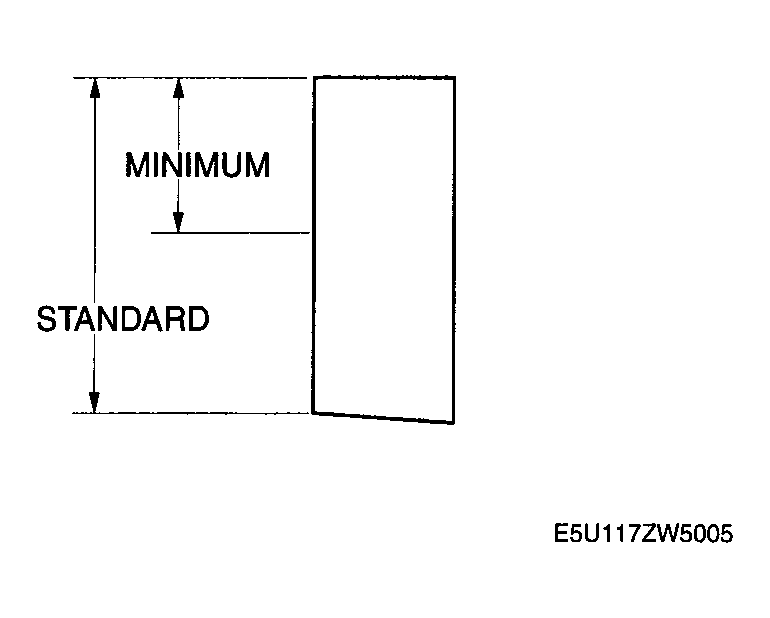

Fig 1: Inspecting Brushes For Wear

Courtesy of MAZDA MOTORS CORP.
