Security System And Locks System
>>
Security And Locks Location Index
Security And Locks Location Index

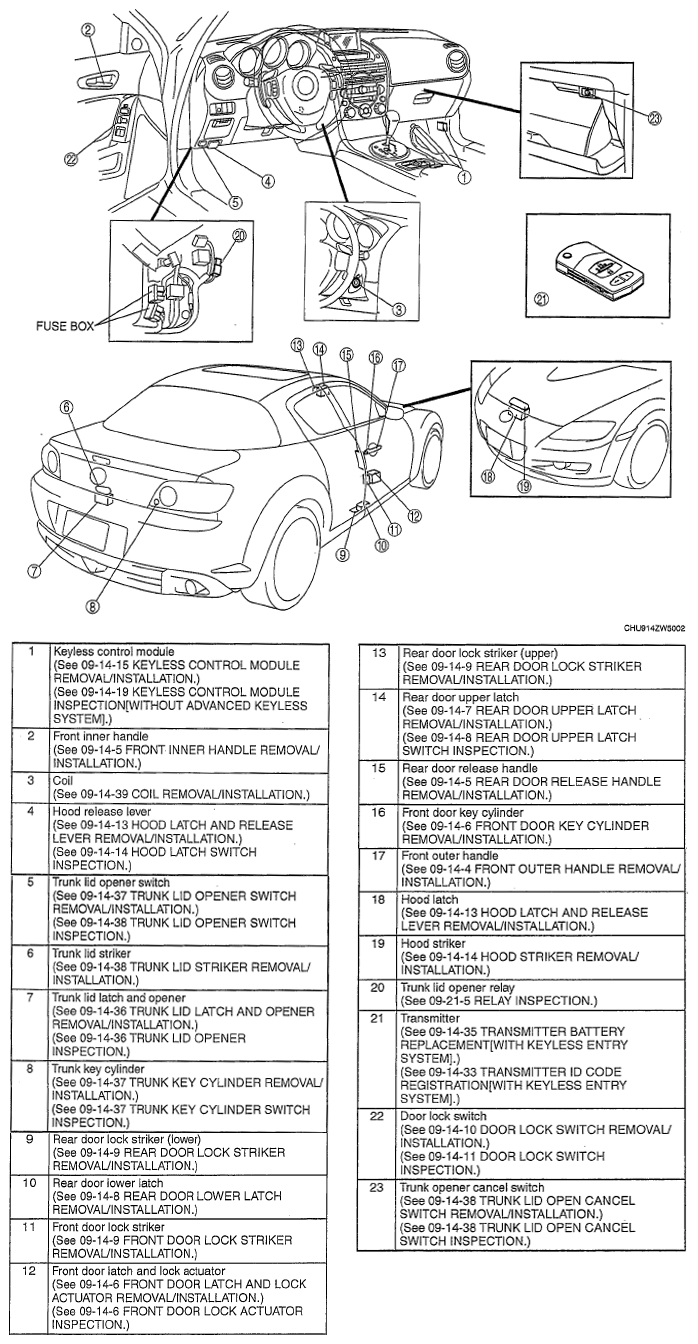

Fig 1: Identifying Security And Lock System Components Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
