Hood Latch And Release Lever Removal/Installation: Notes

  1. To remove the hood latch, remove the seal plate. (see FRONT BUMPER REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.

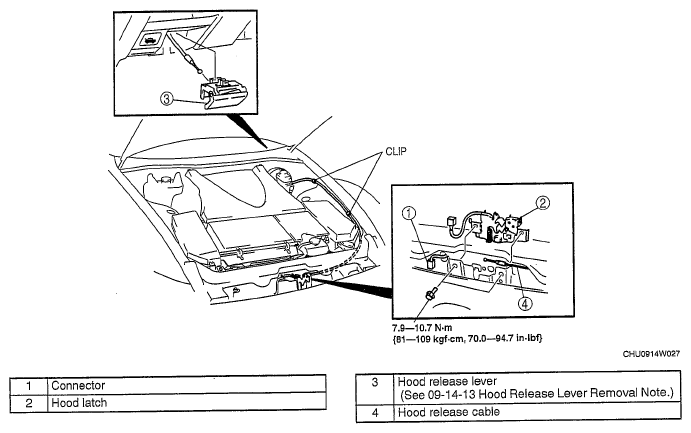

    Fig 1: Hood Latch And Release Lever With Torque Specifications
    G04928890Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
  4. Adjust the hood. (see HOOD ADJUSTMENT .)
