Door Lock Switch Inspection
Door Lock Switch Inspection
Inspect for continuity between the door lock switch terminals.
If not as specified, replace the door lock switch.
Fig 1: Door Lock Switch Continuity Table
Courtesy of MAZDA MOTORS CORP.

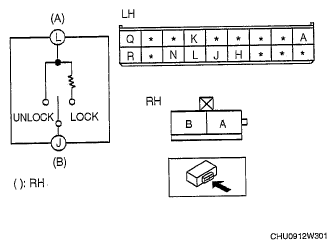

Fig 2: Identifying Door Lock Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
