Steering Gear And Linkage Assembly: Notes

CAUTION:
  • Place copper plates, rag, or similar material in a vise, when securing the mounting bracket portion of the steering gear.
  1. Assemble in the order indicated in the table.

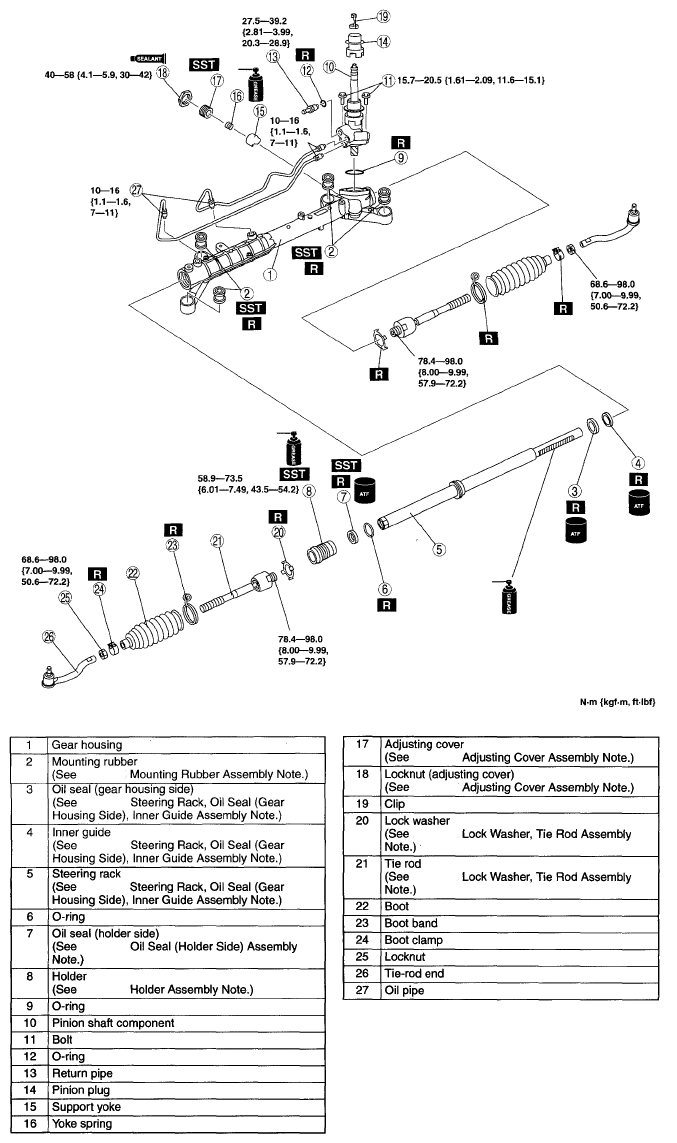

    Fig 1: Steering Gear, Linkage Assembly Order With Torque Specifications
    G05508672Courtesy of MAZDA MOTORS CORP.
