Transfer Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the front stabilizer control link, and rotate the stabilizer to the front to secure a space from the side.

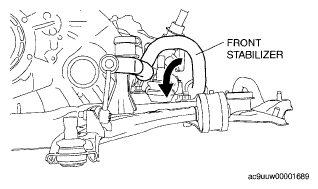

    Fig 1: Rotating Stabilizer To Front
    G05508277Courtesy of MAZDA MOTORS CORP.
  2. Remove the No.1 engine mount bolt and nut.
  3. Remove the transfer installation bolts.
    Fig 2: Identifying No.1 Engine Mount Bolt And Nut
    G05508278Courtesy of MAZDA MOTORS CORP.
  4. Push the engine forward so that the front side of the transfer faces downward, then remove the transfer.

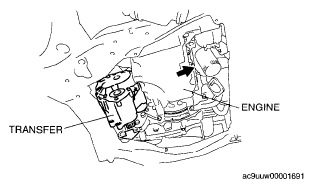

    Fig 3: Identifying Front Side Of Transfer Faces
    G05508279Courtesy of MAZDA MOTORS CORP.
