Transfer Installation Note

WARNING: This page is about a different variant/trim than selected.

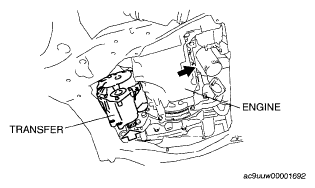

Push the engine forward so that the front side of the transfer faces downward, then install the transfer.
Install the transfer installation bolts.
Tightening torque

90-100 N.m {9.2-10.1 kgf.m, 66.4-73.7 ft.lbf}

Fig 1: Identifying Front Side Of Transfer Faces
Courtesy of MAZDA MOTORS CORP.
Install the No.1 engine mount bolt and nut.
Tightening torque

85.3-116.6 N.m {8.70-11.88 kgf.m, 63.0-85.9 ft.lbf}

Fig 2: Identifying No.1 Engine Mount Bolt And Nut
Courtesy of MAZDA MOTORS CORP.

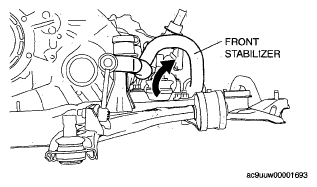

Rotate the front stabilizer to the rear to set it in its original position.

Fig 3: Rotating Front Stabilizer To Rear
Courtesy of MAZDA MOTORS CORP.
