Transfer Bracket Installation Note
WARNING: This page is about a different variant/trim than selected.

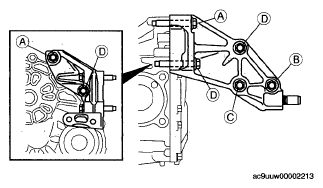

- Install the transfer bracket to the transfer, then temporarily tighten bolt C.
- Temporarily tighten bolt A and B.
- Tighten bolt A, B and G in the order of C→A→B.
Tightening torque
Bolt A, B, C: 42-62 N.m {4.3-6.3 kgf.m, 31-45 ft.lbf}
- Tighten bolt D.
Tightening torque
Bolt D: 42-62 N.m {4.3-6.3 kgf.m, 31-45 ft.lbf}
