Outer Mirror Glass Installation

  1. Connect the heated outer mirror connectors, (vehicles with heated outer mirrors)
  2. Connect the BSM indicator light connector, (vehicles with BSM)
  3. Press part A on the outer mirror glass and install pin A.
  4. Press part B on the outer mirror glass and install pins B.

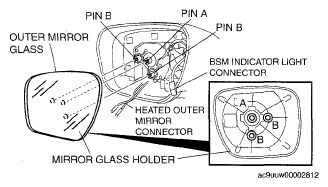

    Fig 1: Identifying BSM Indicator Light Connector, Outer Mirror Glass & Mirror Glass Holder
    G05509369Courtesy of MAZDA MOTORS CORP.
