Transmitter Battery Replacement [Keyless Entry System]

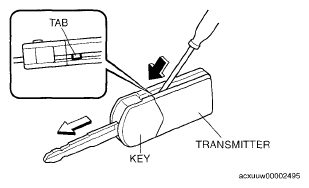

Insert a small flathead screwdriver into the transmitter notch and remove the key from the transmitter by pressing the tab.

Fig 1: Removing Key From Transmitter
Courtesy of MAZDA MOTORS CORP.
Insert a small flathead screwdriver into the transmitter notch and the transmitter.

Fig 2: Inserting Screwdriver Into Transmitter Notch & Transmitter
Courtesy of MAZDA MOTORS CORP.
Remove the battery.

Fig 3: Removing Battery
Courtesy of MAZDA MOTORS CORP.
Install the new battery (CR1620) with the positive pole facing down.
Align the upper and lower cover and close the transmitter.
Used battery

Lithium battery CR1620

Battery life

Approx. 2 years (when used 10 times/day)
Install the key to the transmitter.

Fig 4: Installing Battery
Courtesy of MAZDA MOTORS CORP.
