Liftgate Outer Handle Switch Inspection

Verify that the continuity between the liftgate outer handle switch terminals is as indicated in the table.
- If not as indicated in the table, replace the liftgate outer handle. (See LIFTGATE OUTER HANDLE REMOVAL/INSTALLATION .)

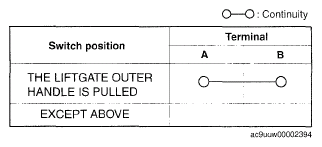

  Fig 1: Terminals Continuity Chart
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Checking Continuity Between Liftgate Outer Handle Switch Terminals
  Courtesy of MAZDA MOTORS CORP.
