Interior, Rear

  1. Disconnect the negative battery cable.
  2. Remove the trunk box. (See TRUNK BOX REMOVAL/INSTALLATION .)
  3. Remove the third-row seat. (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
  4. Partially peel back the floor covering.
  5. Remove the nuts.
  6. Disconnect the connector, then remove the keyless antenna.
  7. Install in the reverse order of removal.

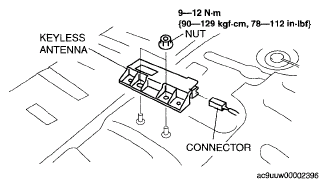

    Fig 1: Keyless Antenna, Connector With Screw With Torque Specifications (Interior, Rear)
    G05509505Courtesy of MAZDA MOTORS CORP.
