Interior, Front: Center

  1. Disconnect the negative battery cable.
  2. Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)
  3. Remove the front console box mat. (See FRONT CONSOLE BOX MAT REMOVAL/INSTALLATION .)
  4. Remove the indicator panel. (See INDICATOR PANEL REMOVAL/INSTALLATION .)
  5. Remove the front console box. (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
  6. Disconnect the connector, then remove the screws.
  7. Remove the keyless antenna.
  8. Install in the reverse order of removal.

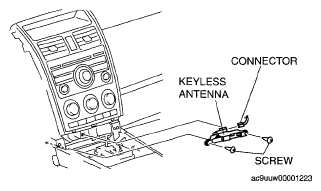

    Fig 1: Identifying Keyless Antenna & Connector With Screw (Interior, Front)
    G05509502Courtesy of MAZDA MOTORS CORP.
