Front Door Key Cylinder Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    5. Front door module (See FRONT DOOR MODULE REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

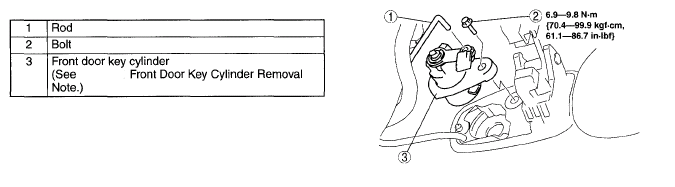

    Fig 1: Front Door Key Cylinder Bolt, Rod With Torque Specifications
    G05509449Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
