Door Lock-Link Switch Inspection: Front/rear

  1. Inspect for continuity between the door lock-link switch terminals.
    • If not as specified, replace the front door latch and lock actuator.

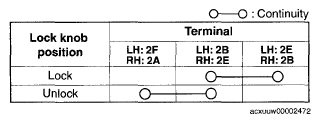

      Fig 1: Terminals Continuity Chart
      G05509460Courtesy of MAZDA MOTORS CORP.

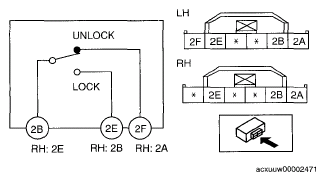

      Fig 2: Checking Continuity Between Door Lock-Link Switch Terminals
      G05509461Courtesy of MAZDA MOTORS CORP.
