Door Lock Switch Inspection

  1. Inspect for continuity between the door lock switch terminals using an ohmmeter.
    • If not as specified, replace the door lock switch.

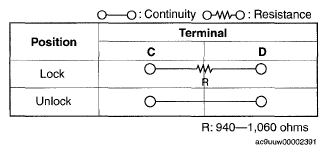

      Fig 1: Terminals Continuity Chart
      G05509456Courtesy of MAZDA MOTORS CORP.

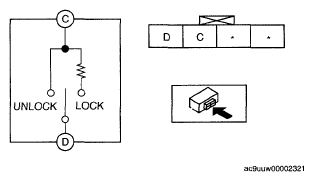

      Fig 2: Checking Continuity Between Door Lock Switch Terminals
      G05509457Courtesy of MAZDA MOTORS CORP.
