Main Fuse Block: Notes

The engine compartment main fuse block is located next to the battery, see illustration below.

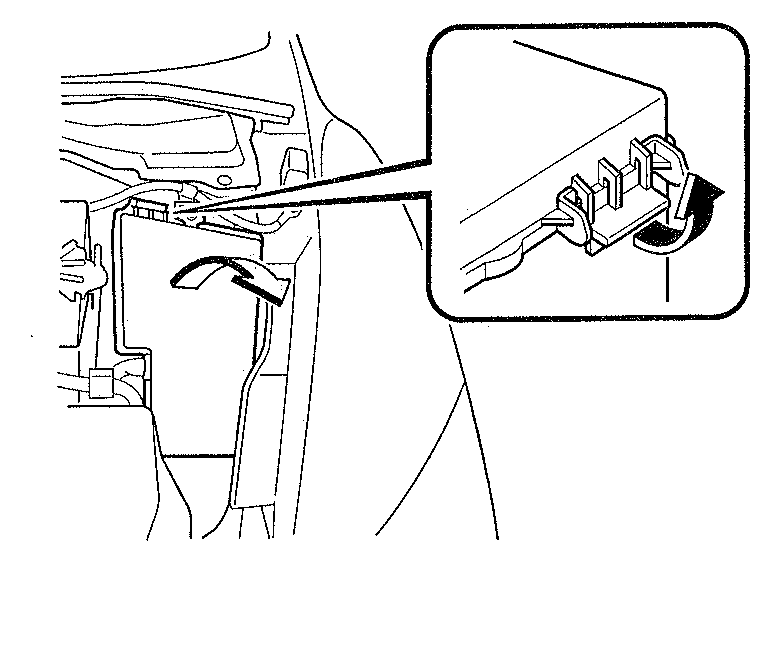

Fig 1: Identifying Engine Compartment Fuse Block
G00486826Courtesy of MAZDA MOTORS CORP.

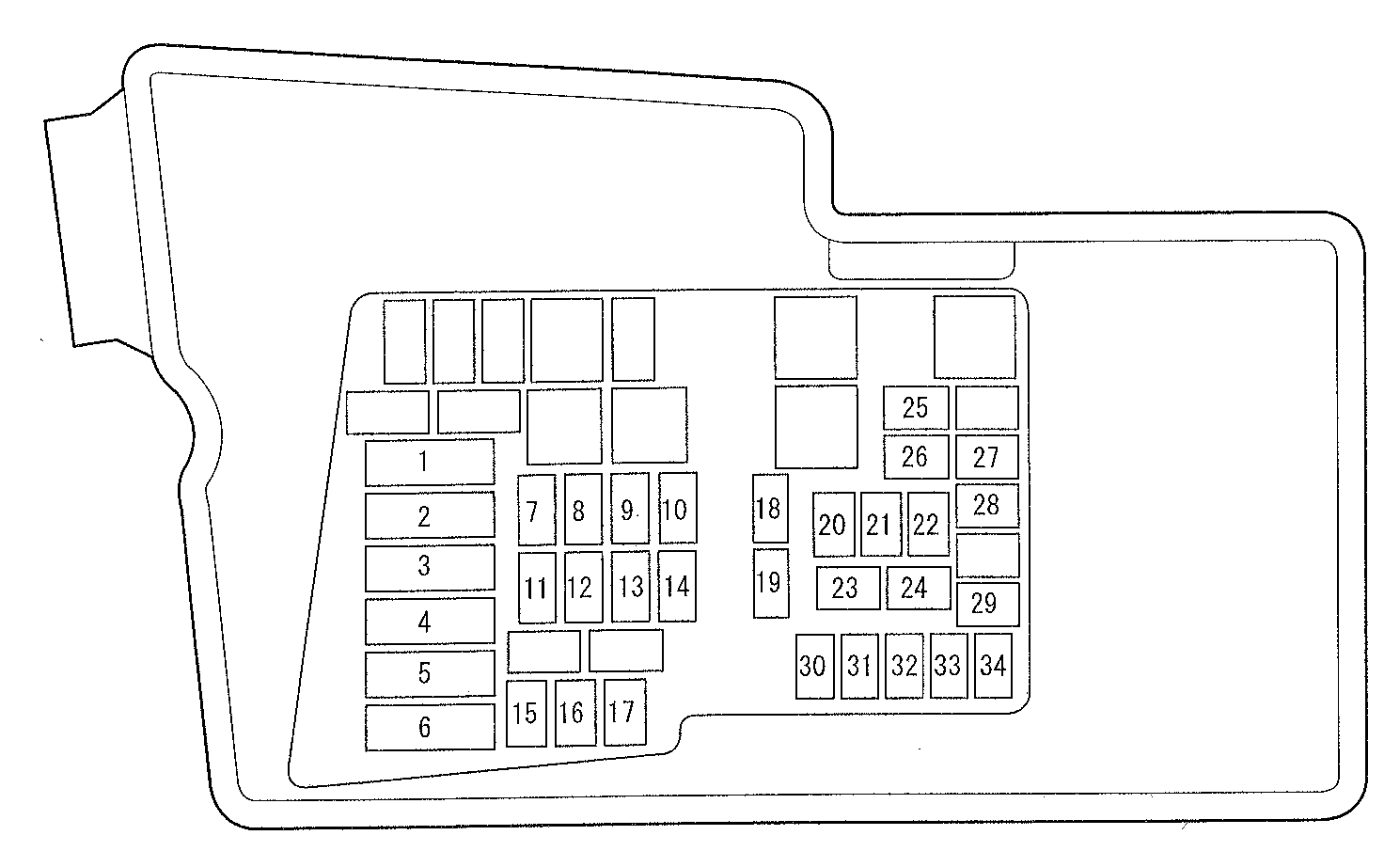

Fig 2: Identifying Engine Compartment Fuse Block Components
G00486827Courtesy of MAZDA MOTORS CORP.
