Liftgate Lock Actuator Inspection

  1. Apply battery positive voltage and connect ground to the corresponding liftgate lock actuator terminals, and inspect the liftgate lock actuator operation.
    • If not as specified, replace the liftgate latch and lock actuator.
    LIFTGATE LOCK ACTUATOR INSPECTION REFERENCE

    Lock actuator operation Connection
    B+ GND
    Lock A B
    Unlock B A

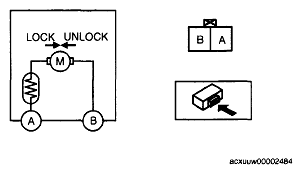

    Fig 1: Identifying Liftgate Lock Actuator Terminals
    G04861125Courtesy of MAZDA MOTORS CORP.
