Exterior, Rear

  1. Disconnect the negative battery cable.
  2. Remove the bolts.
  3. Disconnect the connector, then remove the keyless antenna.
  4. Install in the reverse order of removal.

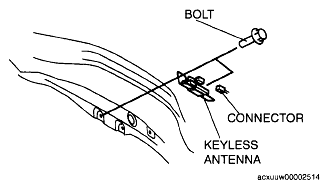

    Fig 1: Identifying Keyless Antenna And Connector For Exterior
    G04861166Courtesy of MAZDA MOTORS CORP.
