Exterior, LF/RF

  1. Disconnect the negative battery cable.
  2. Remove the door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION ).
  3. Remove the screws.
  4. Disconnect the connector, then remove the keyless antenna.
  5. Install in the reverse order of removal.

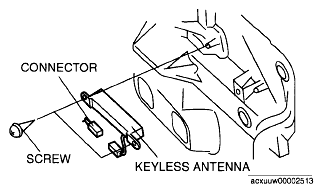

    Fig 1: Identifying Keyless Antenna And Connector For Exterior LF/RF
    G04861165Courtesy of MAZDA MOTORS CORP.
