Hood Latch Switch Inspection

When inspecting the latch, press the latch lever using a flathead screwdriver or a similar tool.

Fig 1: Inspecting Hood Latch Switch
Courtesy of MAZDA MOTORS CORP.
Inspect for continuity between the hood latch switch terminals.
- If not as specified, replace the hood latch.

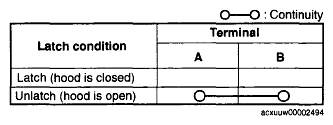

  Fig 2: Continuity Reference Table
  Courtesy of MAZDA MOTORS CORP.

  Fig 3: Identifying Hood Latch Switch Terminals
  Courtesy of MAZDA MOTORS CORP.
