Front Door Key Cylinder Switch Inspection

  1. Inspect for continuity between the front door key cylinder switch terminals.
    • If not as specified, replace the front door latch and lock actuator.

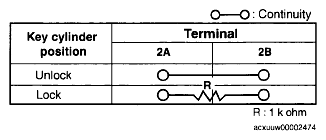

      Fig 1: Continuity Reference Table
      G04861114Courtesy of MAZDA MOTORS CORP.

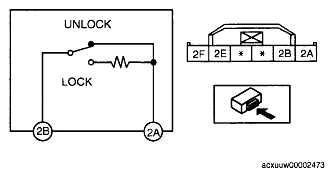

      Fig 2: Identifying Front Door Key Cylinder Switch Terminals
      G04861115Courtesy of MAZDA MOTORS CORP.
