Throttle Position Sensor Connector End View (C189)

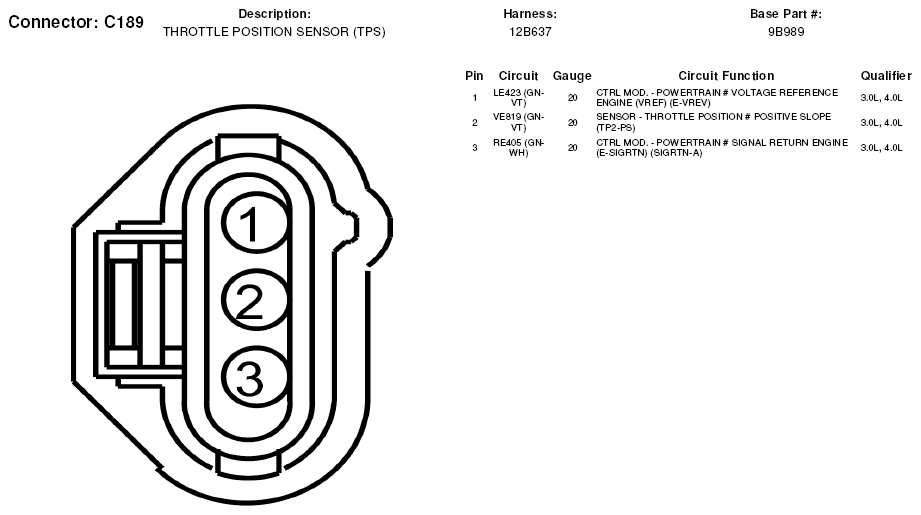

Fig 1: Throttle Position Sensor Connector End View (C189)

G05603066
