Home >> Mazda >> 2008 >> B4000 Base, Standard >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering System >> Inner Tie Rod >> Notes

Inner Tie Rod: Notes

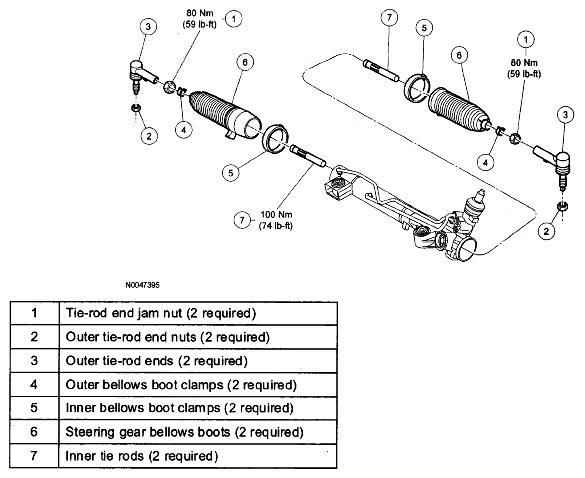

Fig 1: Exploded View Of Inner Tie Rod With Torque Specifications

G04930672
